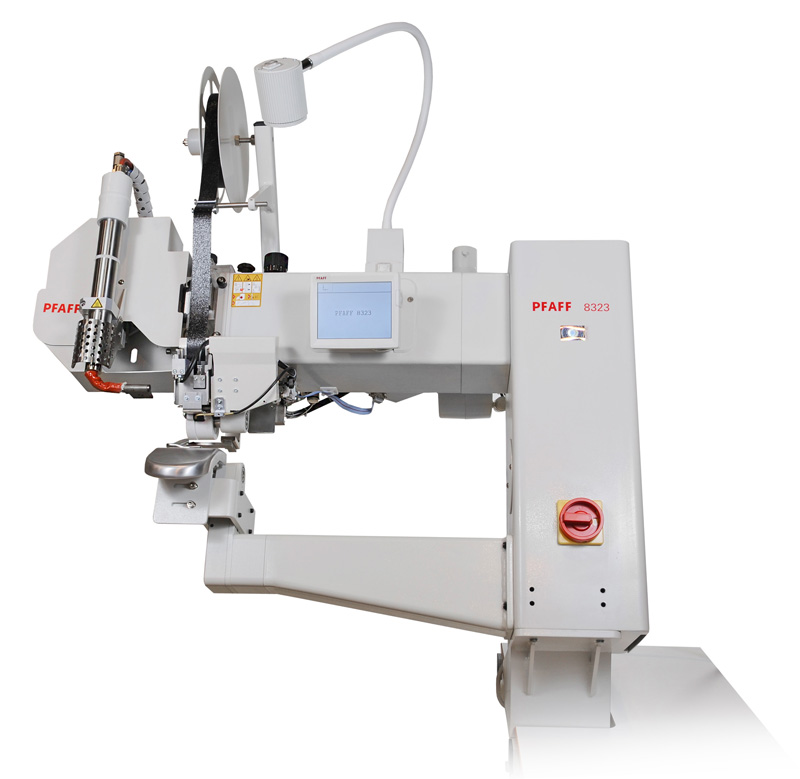

PFAFF 8323

With the PFAFF 8323 sealing sequences can be programmed, i.e. depending on the cutting and the fabric any parameters can be entered for any given segment and reproduced with 100% accuracy.
An absolute innovation from PFAFF!

• Traditional taping combined with the possibility of direct welding

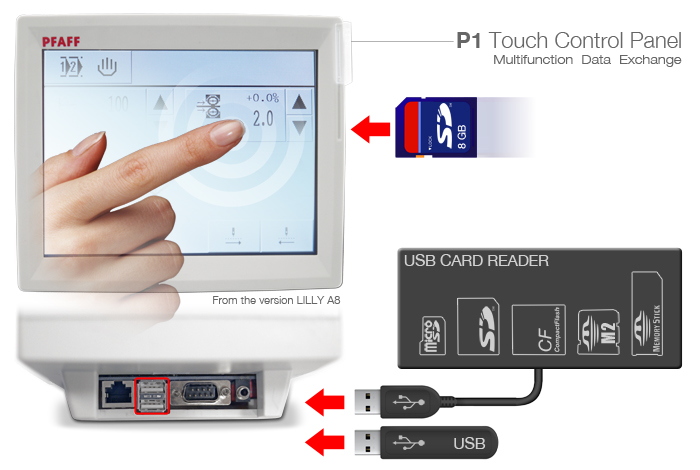

• Touch-control-panel P1 with integrated SD card reader and USB slot. The P1 guarantees an intuitive operation

Features

• Different user accounts protected by password (e.g. : fixed parameters by operators)
• Programmable segments
• Automatic monitoring and constant of all programmed parameters

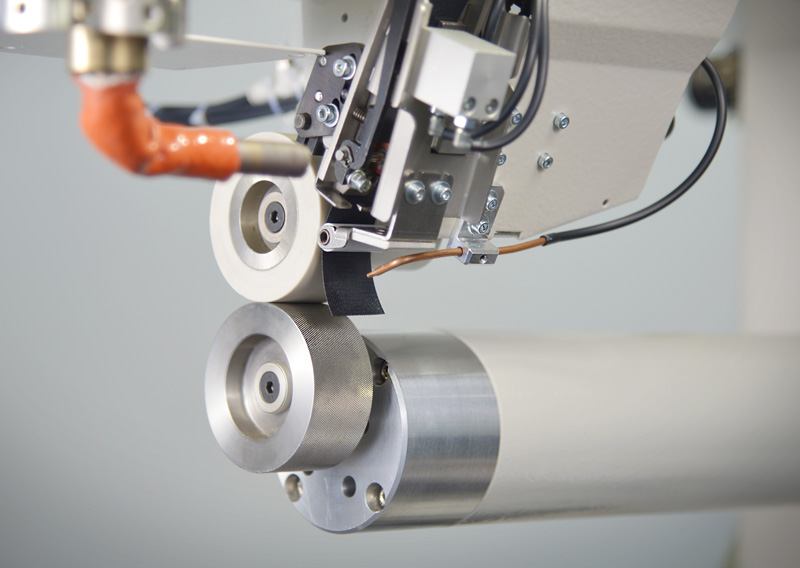

• Variable post system (Freearm, feed-off the arm and arm with post)
• Rollers with up to 50mm
• Exact reproducible nozzle-settings possible through cross-slide
• Programs and parameters can be transferred to other machines
• Nozzle position is maintained to material for cross-stitching (seam bulge)
• Tape cutter up to 25 mm
• Software update via download possible

Options

• Tape cutter up to 30 mm
• Monitoring of heat temperature by two thermocouples

Applications

For high technical application (e.g. tents, sophisticated textiles, chemical-protective suits, convertible soft tops etc.)

Specifications

Sealing temperature: max. 650 °C
Sealing speed: max. 10 m/min (standard), option up to 20 m/min available
Width of nozzles: 10 – 50 mm (others available)
Power input: approx. 3500 W
Heating capacity: approx. 3300 W
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
